Molecules released within the working area of the fume cupboard are contained thanks to an air flow entering that prevents the leakage as well as to be breathed accidentally by the operators. Thanks to the presence of specially designed and validated aerodynamic edges the containment action is optimal, without sacrificing comfort and ergonomics of use. Moreover, the presence of a internal back-baffle ensures that even the heaviest molecules can effectively be dragged towards the suction plenum, ensuring effective uptake.

Our collective protection devices are designed to operate with high efficient filtration systems to allow the total retention of released pollutants. Thanks to a double filtering stage (1st prefiltration, 2nd absolute filtration) we are able to separate the molecules in order to optimize the life-time of the high-value main filter elements by reducing operating costs of the device.

Our fume cupboard for powders handling can be configured according to specific needs of operators installing especially designed accessories. For example our fume cupboard can be equipped with anti-vibration stands and airflow-stand-by inter-locking systems to ensure precision weigh up the 5th decimal place with the greatest possible repeatability, as well as we can provide lateral waste systems to ensure the total containment of toxic molecules.

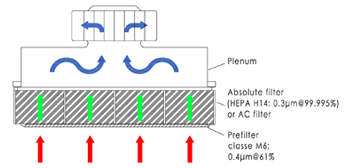

The filtration system installed on fume cupboard for powders handling is fully adaptable to the needs of use. It features a first pre-filtration stage with M6 class of filters to avoid main-filters clogging due to environmental particles then a main filtration stage layered depending on the type of manipulation carried-out to retain the hazardous molecules released during chemicals manipulations.

Absolute filters availability:

HEPA class H14: retention efficiency 99.995% at 0.3 µm (ref. EN1822: 2009)
ULPA class U17: retention efficiency 99.999995% at 0.3?m (ref. EN1822: 2009)
It is even possible to install activated-carbon secondary filters so as to extend the range of use and the containment against vapors of substances in the liquid phase occasionally used. The modularity is made possible thanks to the use of HEPA filters and activated carbon filters of different thicknesses (100mm, 60mm and 40mm) with different coal types based on the type of molecule to be retained.

C100: specific for organic solvents suitable for general uses
C200: specific for formaldehyde and glutaraldehyde vapors
C300: specific to ammonia vapors and amines
C400: specific for acid vapors
Some examples of available layouts are provided below.

Frequence of use:
100% powders

Filtration unit layout:

1x absolute filter HEPA H14

Frequence of use:
80% powders+ 20% organic solvents

Filtration unit layout:

1x absolute filter HEPA H14
1x activated carbon filter C100/B4

Filtration fume cupboard for weighting applications, available in four dimensions 1000/1200/1500/1800. Provided with double-frame antivibration stand. Usable with or without an exhausting connection, but with embedded filters.

Filtration fume cupboard for weighting applications suitable for narrow available space (800mm wide). Provided with double-frame antivibration stand. Usable with or without an exhausting connection, but with embedded filters.

High performance filtration fume cupboard available in four dimensions 1000/1200/1500/1800. Highly customizable with different accessories. Usable with or without an exhausting connection, but with embedded filters.

Bench-top filtration fume cupboard suitable for small available space (800mm wide only) or for chemical handling not frequently performed for which small worktop is enough. Usable with or without an exhausting connection, but with embedded filters.

Compact and easy-to-use filtration fume cupboard available in two dimensions 800/1200mm. Designed to fit the need of installation within laboratories with logistical constrains such small aisles, narrow stairs or no elevator availability. Usable with or without an exhausting connection, but with embedded filters.

Ducted fume cupboard available in four dimensions 1000/1200/1500/1800 working with an exsting ventilation system. CAV (constant-air-volume) type fume cupboard that does not need any complex control system. They feature high reliability and durability. Highly customizable through many available accessories and dimension personalization to best fit user’s need.
