S-Series

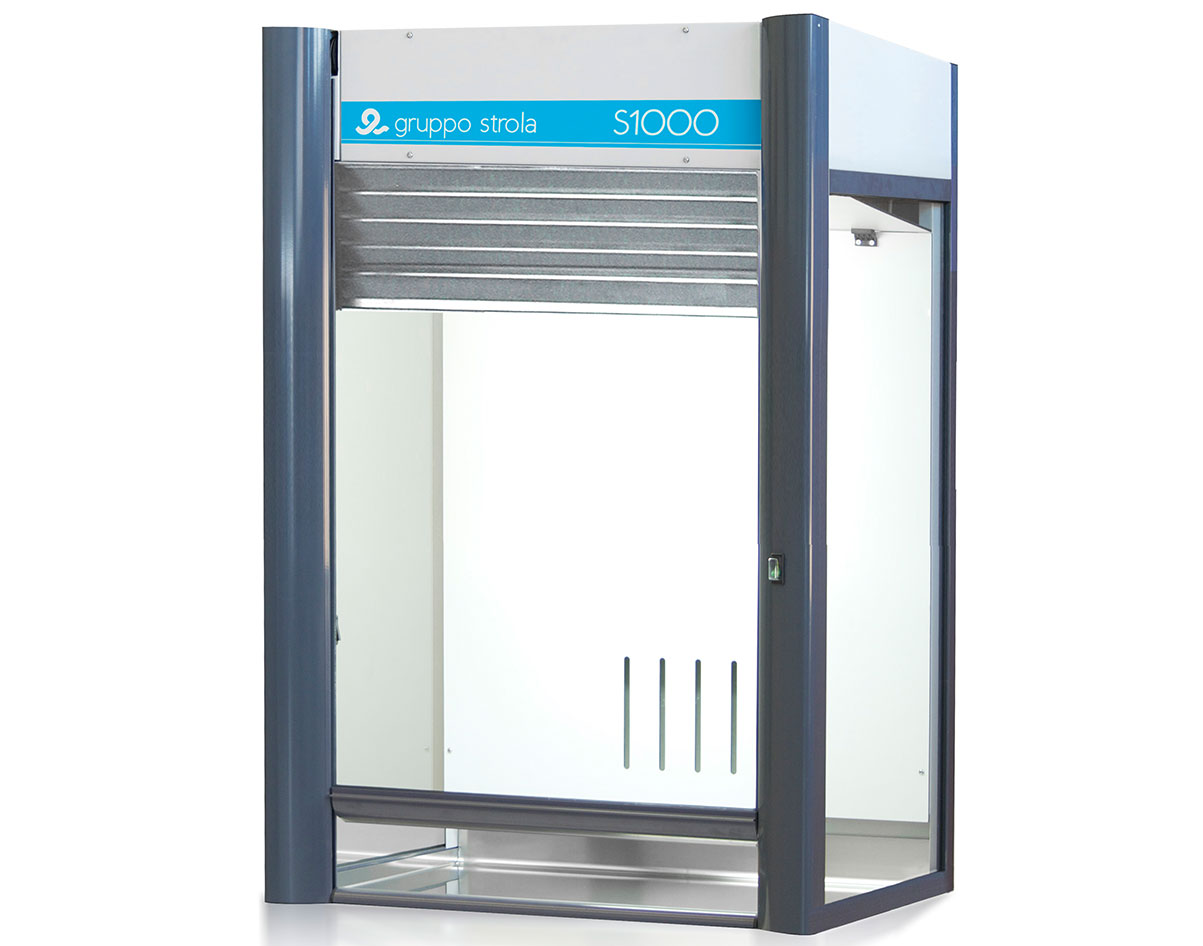

Bench-top ducted fume cupboard
dimension 1000/1200/1500/1800
- Ext. width (mm)1000| 1200 | 1500 | 1800
- Int. width (mm)942 | 1142 | 1442 | 1742
- Ext. depth (mm)750
- Int. depth (mm)590
- Ext. height (mm)1506
- Int. height (mm)1133
- Opening width (mm)780 | 980 | 1280 | 1580
- Opening height (mm)80-380 (service up to 720)
- Face velocity (m/s)0.4-0.6
- Max. flow rate (m3/hr)587 | 737 | 963 | 1188
- Weight (kg)116 | 132 | 157 | 182
The S-Series fume cupboard are bench-top ducted devices for laboratory personel protection potentionally exposed to the risk of inhaling harmful chemicals. Designed and manufactured using the same aesthetical and key-points fo the GS-Series filtration fume cupboard, represent an alternative solution for applications that needs to exhaust polluted air outside. It features:
- Optimal containment certified to BS7258, DIN12924, ANSI ASRHAE 110 carried out by authorized body

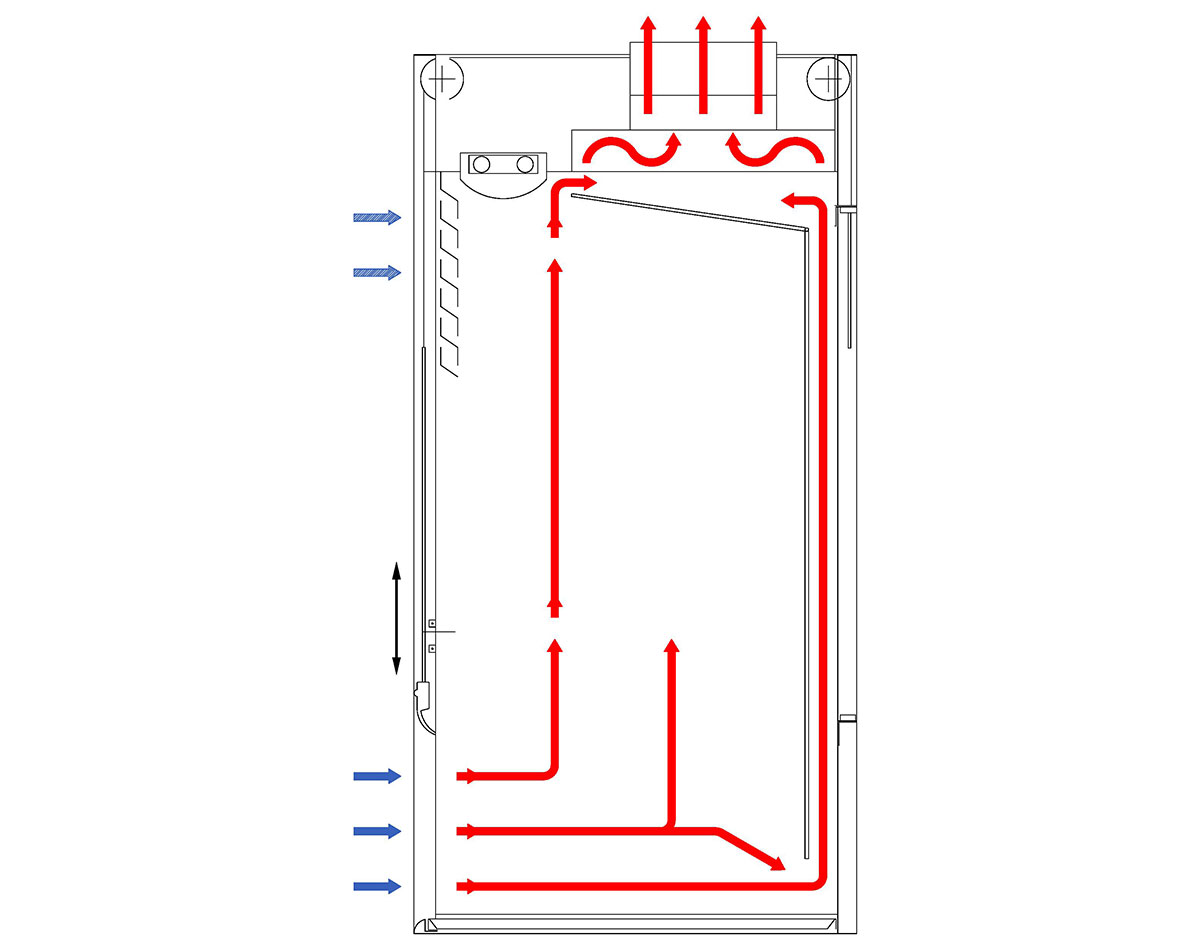

- CAV-type (constant air volume) do not need any complex dumper to adjust the flow rate in accordance to sash movement thank to a top-bypass-grid that allow to mantain a constant face velocity at any opening height
- Counterweighted frontal sash
- Exhausting plenum with 250mm diameter manifold and anti-explosion top panel
- IP67 internal lighting
- AISI304 Stainless steel worktop
- Acoustic and visual low-airflow alarm
- CE marking according to:
- 2006/42 EEC: Machinery Directive
- 2006/95 EEC: Low Voltage Directive (50-1000 V)
- 2004/108 EEC: Electromagnetic Compatibility Directive
- EN 61010-1: 2013: Safety requirements for electrical equipment for measurement, control and laboratory use (classification CEI 66.5)
CONSTRUCTION
- RAL 7035 coloured epoxy-powder coated and chromate rolled steel Fe37 frame
- RAL7015 coloured epoxy-powder coated aluminium aerodynamic shaped uprights
- AISI304 stainless steel worktop
- Frontal counterweighted sliding sash with double-rope suspension made with PVB safety glass (6mm thickness)
- Lateral panel made with PVB safety glass (6mm thickness)
- Electrical system CEI64.2-IP44 with magnetothermic switch protection
- Exhausting system connection through 250mm diameter manifold
ACCESSORIES

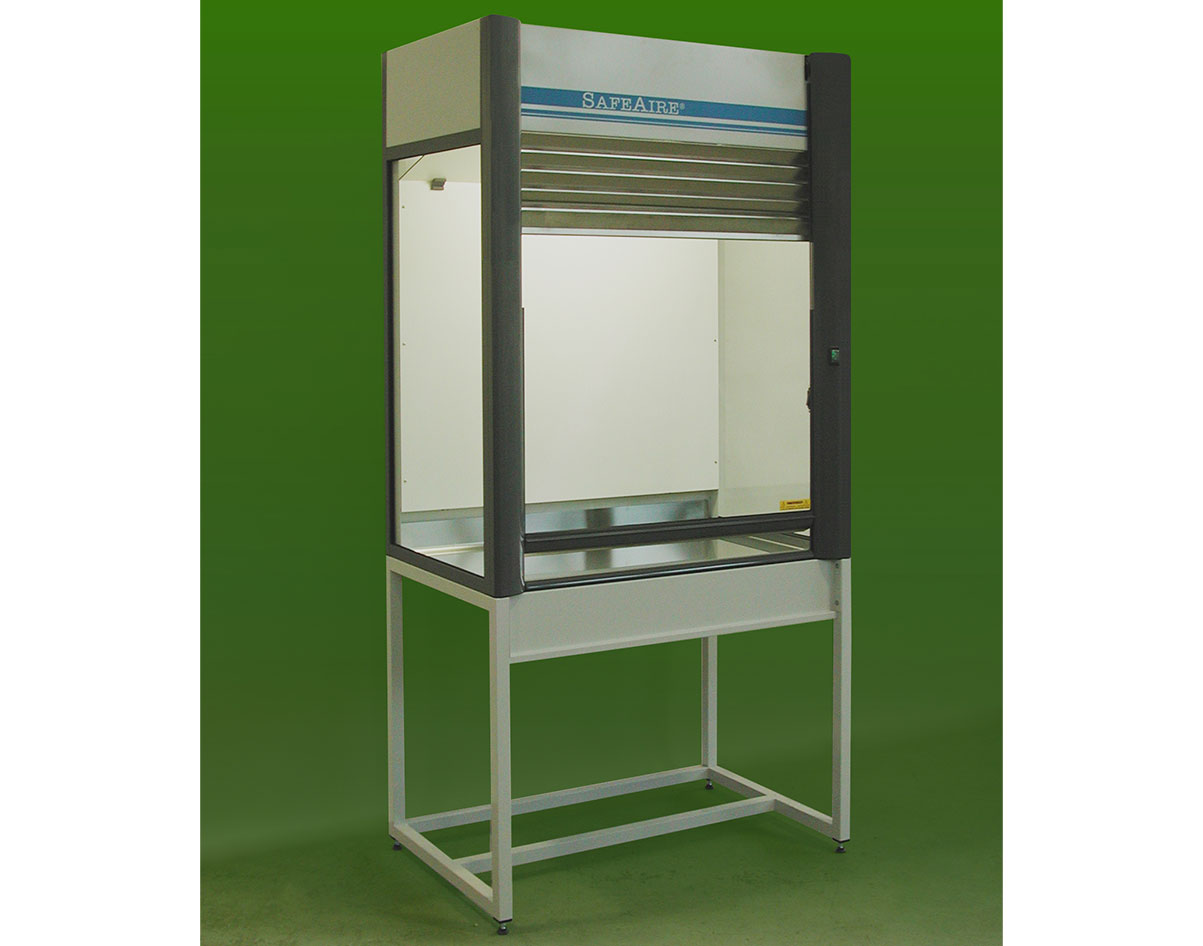

- Epoxy/polyester coated base-stand with or without under-bench key-loched stoarge cabinet
- Ventilation system for under-bench storage cabinet
- Anti-vibration base-stand for high-precision weighting
- Air-flow stand-by for high precision weighting
- Polypropylene worktop
- Monolithic ceramic stonewear worktop
- Custom stainless steel worktop for specific application: anatomy pathology, special waste recovering, industrial processes
- Different dimensions sink and drip-cups
- Electrical sockets
- Gas & Water services with remote control
- Delivery & Waste process fluid system
- UV-Light system (removable)
- Halogen Spotlight fitted on adjustable arm for internal lighting
- Magnifying lens with LED lighting
